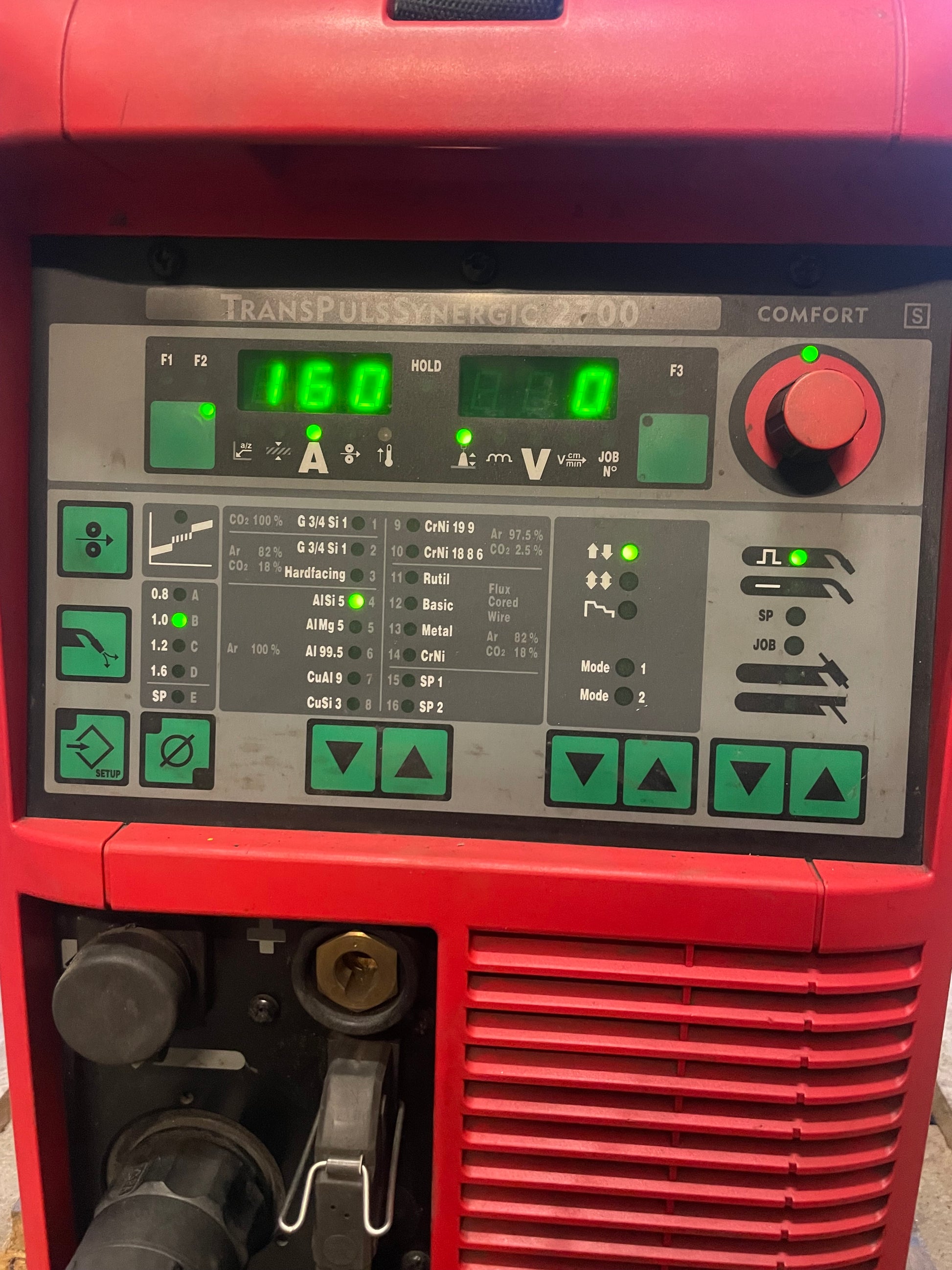

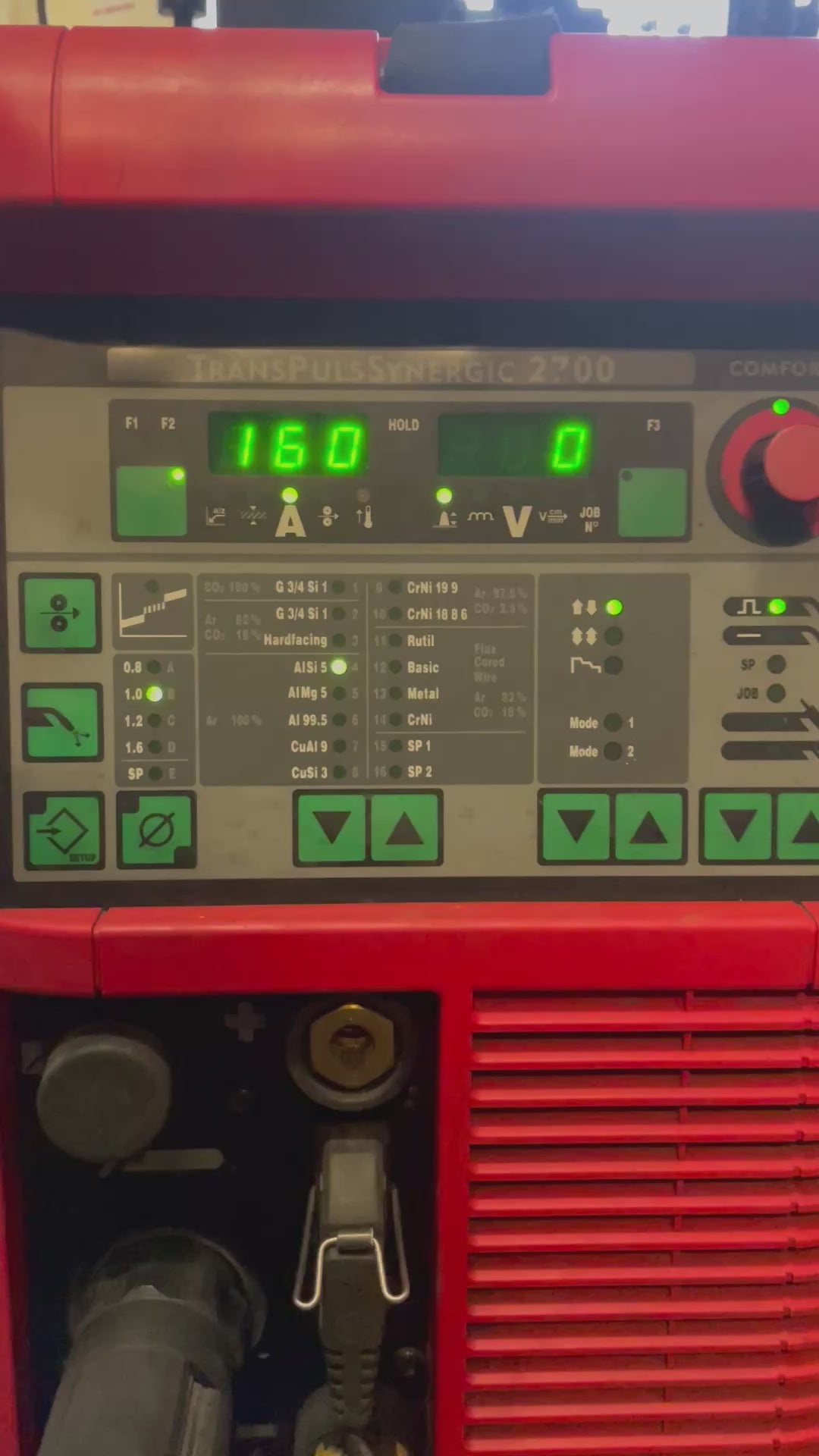

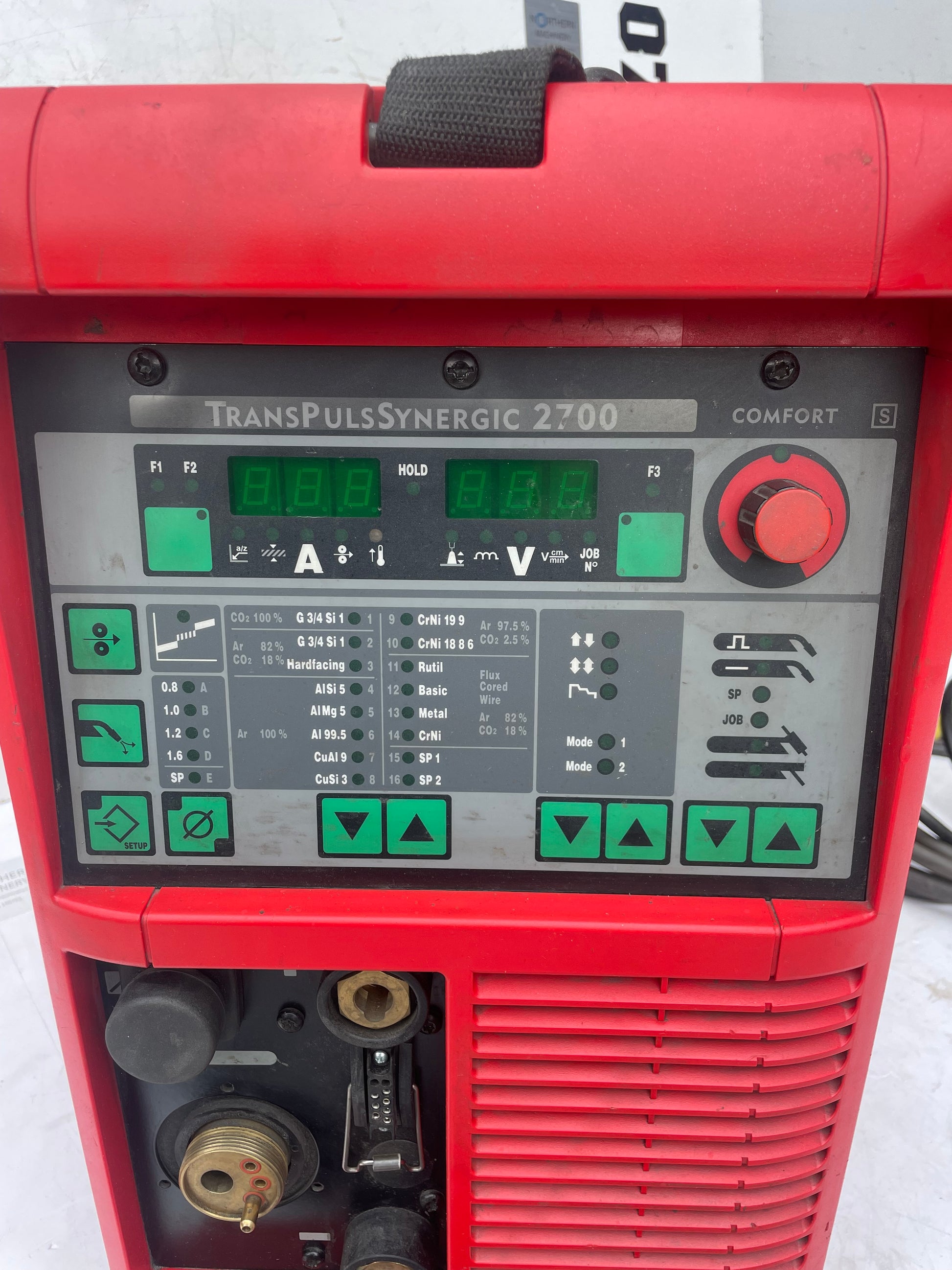

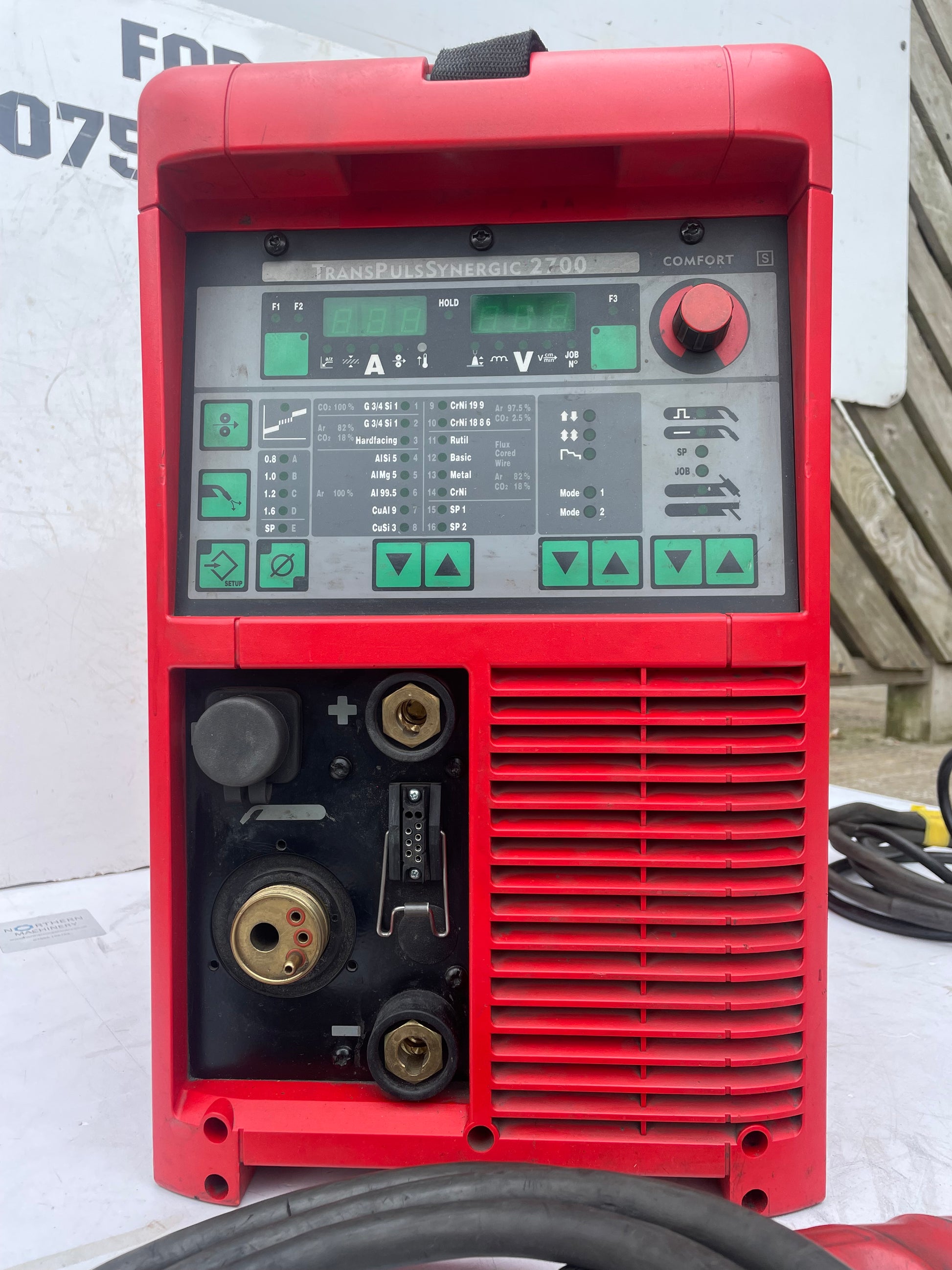

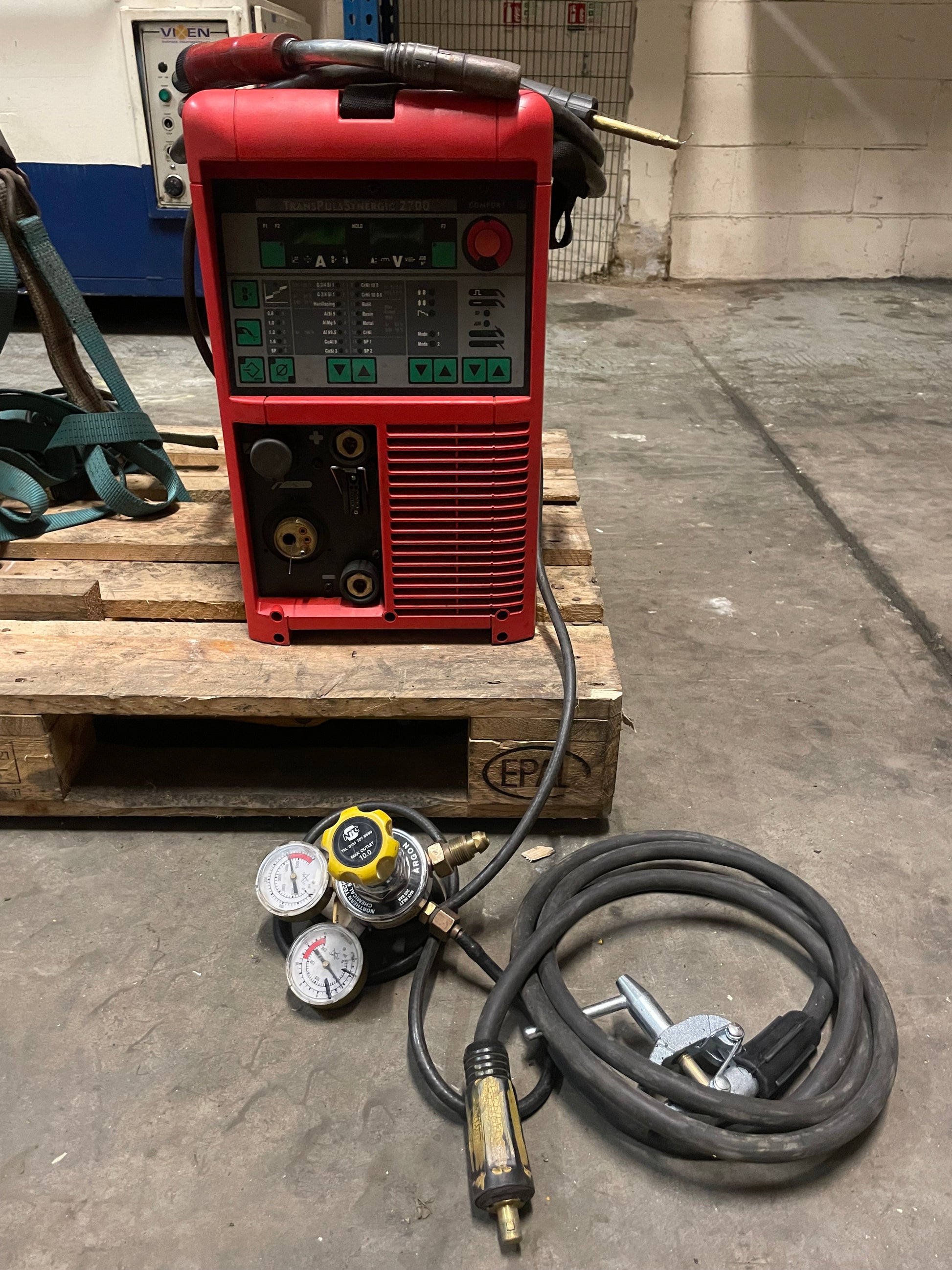

FRONIUS TRANS SYNERGIC 2700 PULSE MIG WELDER Tig & Stick Functions 415V-
What a great machine !! This is a brilliant all rounder capable of welding a multitude of different weld materials , iv welded alloy with this machine its capability of fine tuning is brilliant, good thing is if your doing repeat jobs you can get the perfect setting and program the details into the machine and it will store them for next time your on that same job speeding up the work process. Its deigned to be mobile with the lift handle and strap on the top however for its size and weight it produces the same if not better than many of the larger static welders .
The Fronius TransPuls Synergic (TPS) 2700 is a 270A, 400V portable multi-process MIG/MAG, TIG, and stick welding machine. It features an integrated 4-roller drive, 100+ Synergic programs, and is designed for industrial, field, or repair use (approx. 27 kg). It delivers 270A at 30%–40% duty cycle, supporting high-performance pulse welding.

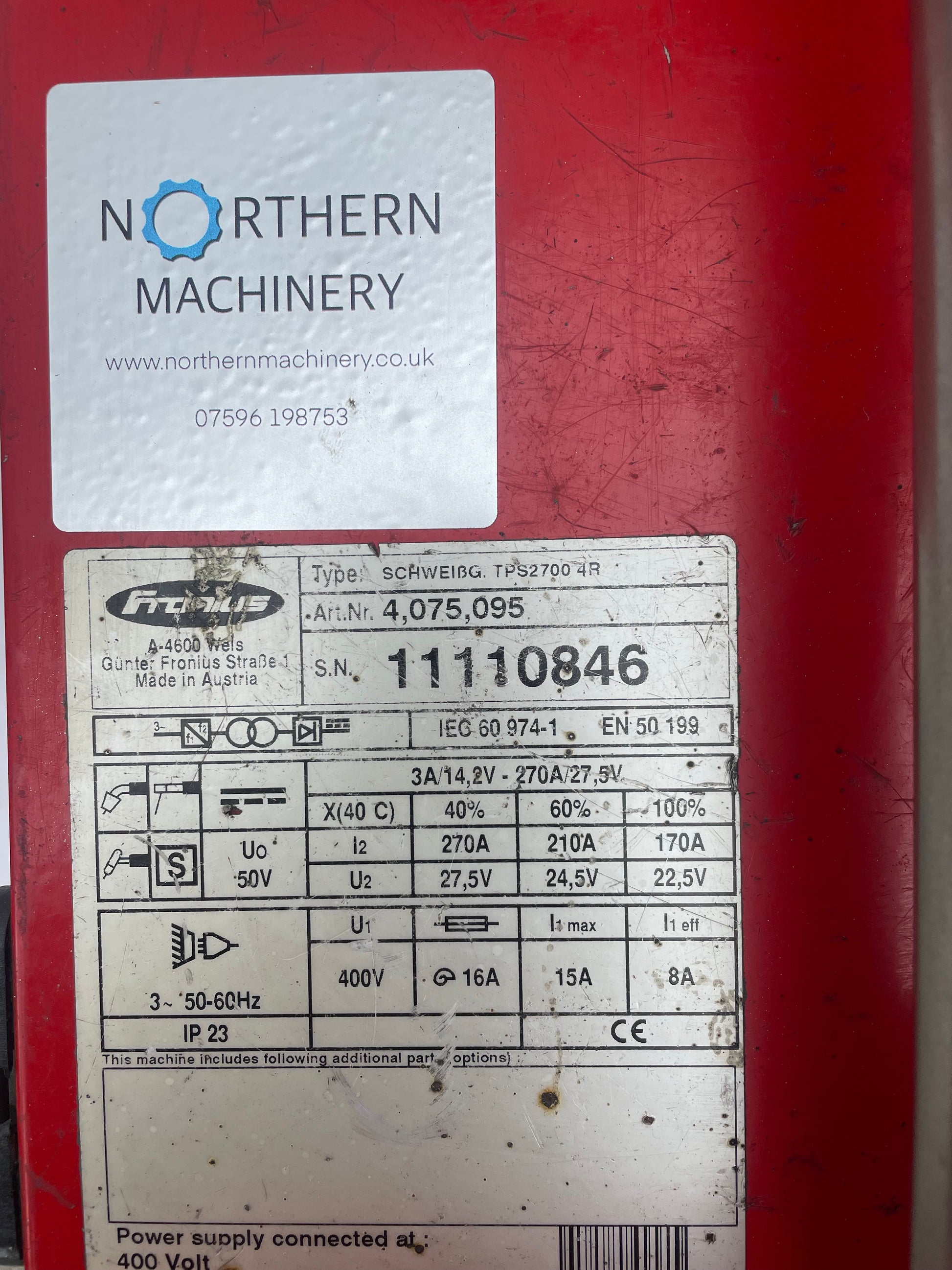

Key Specifications & Technical Data:

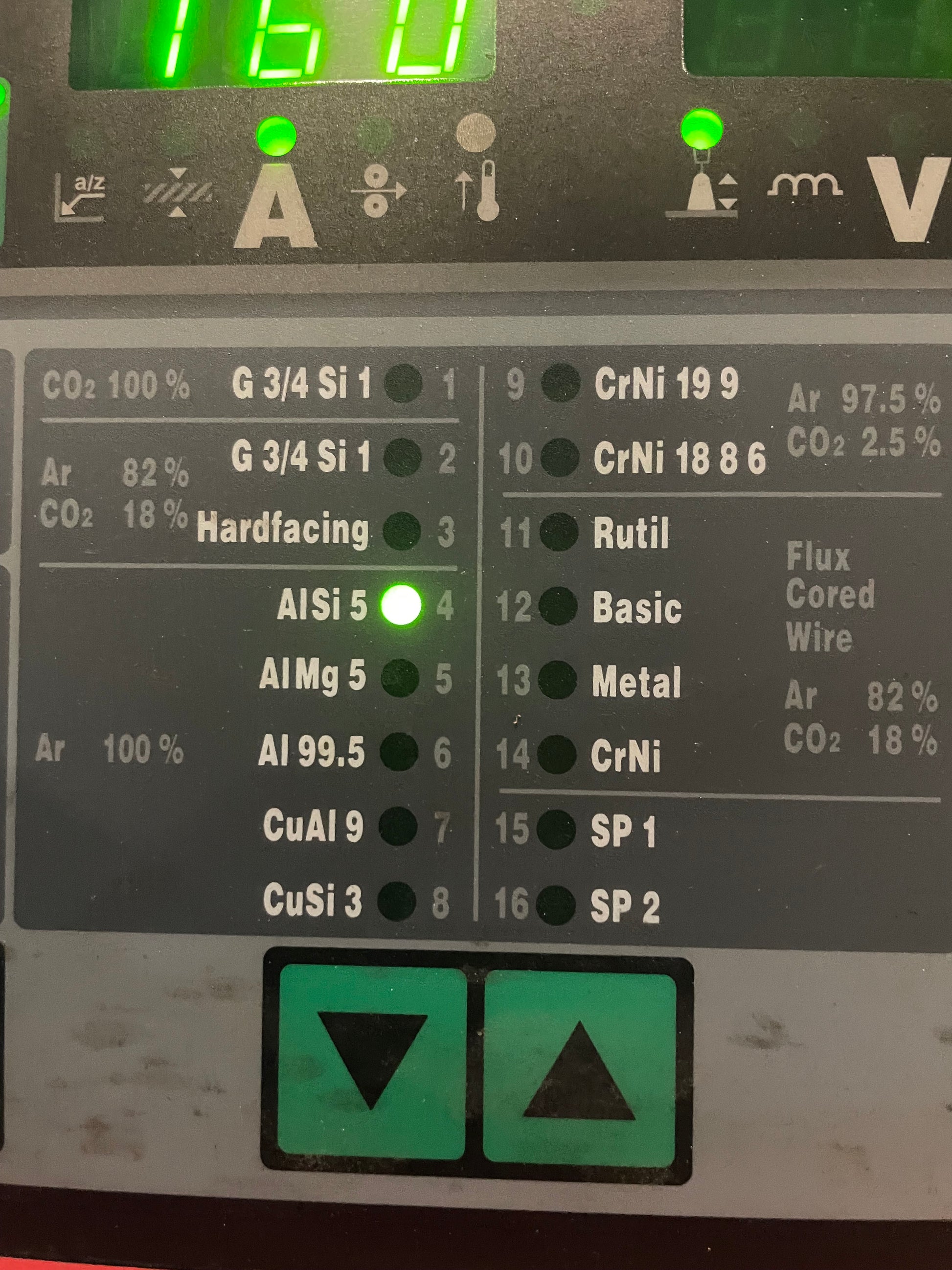

Welding Process: MIG/MAG (Synergic pulsed-arc), TIG, MMA (Electrode).
Welding Current Range: 3A – 270A.
Duty Cycle (10min/40°C): 270A @ 30%–40% DC, 210A @ 60% DC, 170A @ 100% DC.
Mains Voltage: 3 x 380V / 400V / 460V (50-60Hz).
Mains Fuse (Slow): 16 A.
Open Circuit Voltage: 50 V.
Weight: ~27 kg (60 lbs).
Protection Class: IP 23.
Features & Capabilities:
Synergic Operation: Automatic adjustment of parameters when one is changed.

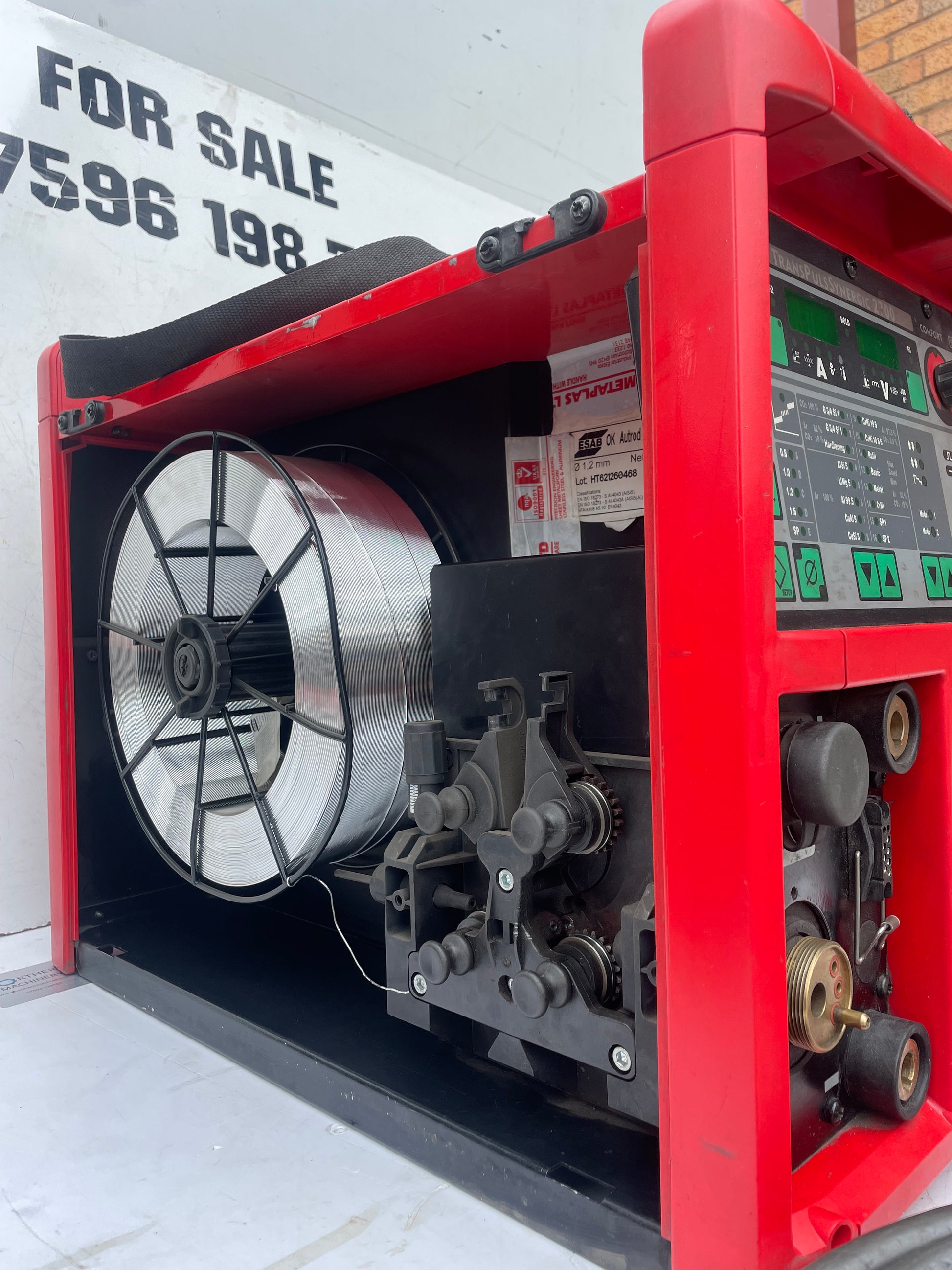

Portable Design: Integrated 4-roller drive unit for wire feeding.

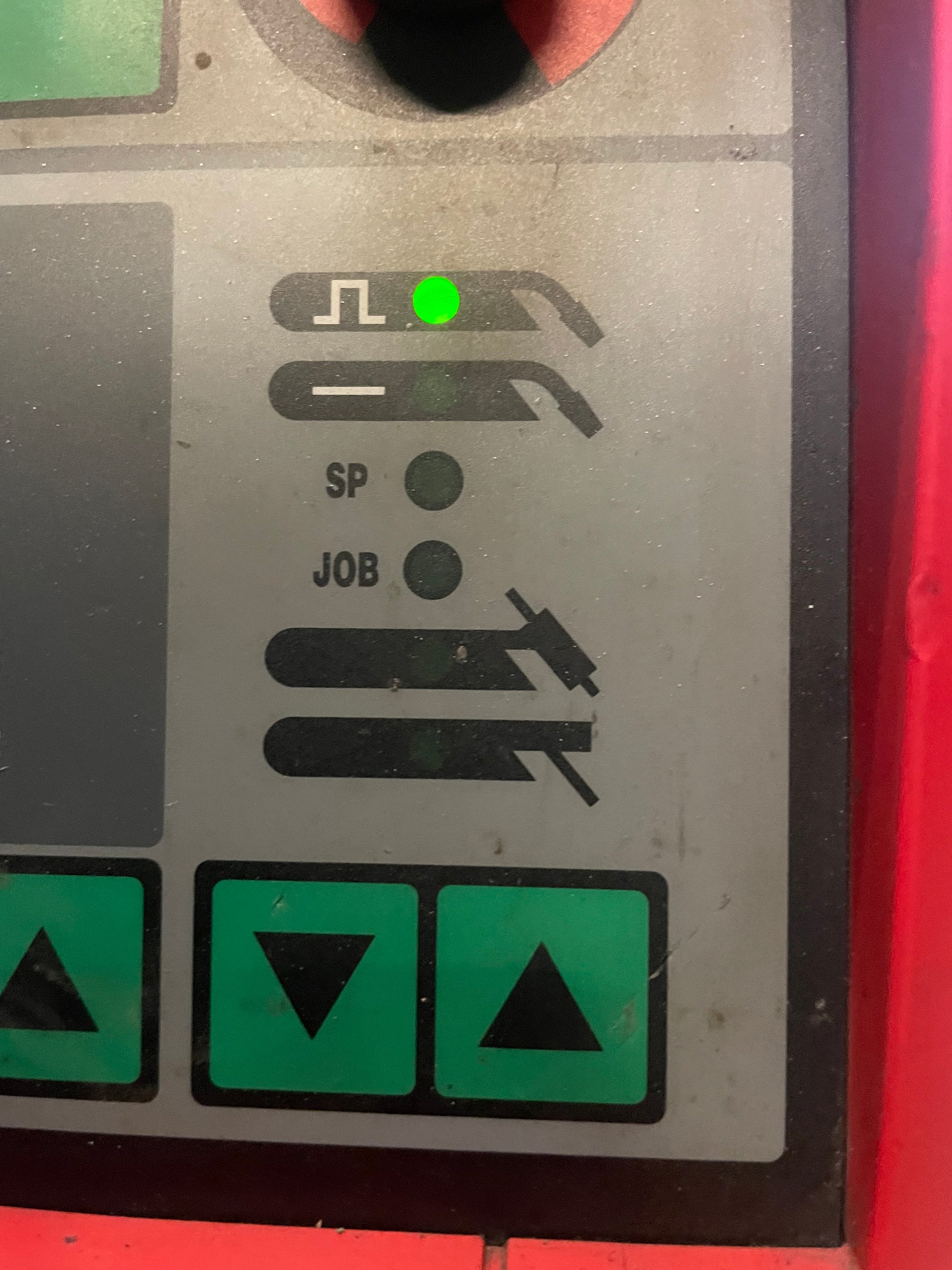

Pulse Technology: Specialized pulse welding for superior control on thin materials (1 Hz to 990 Hz).
Wire Spool: Accommodates standard 300mm (44 lb) spools.
Advanced Options: Job Mode (storage), TIG Comfort Stop.
