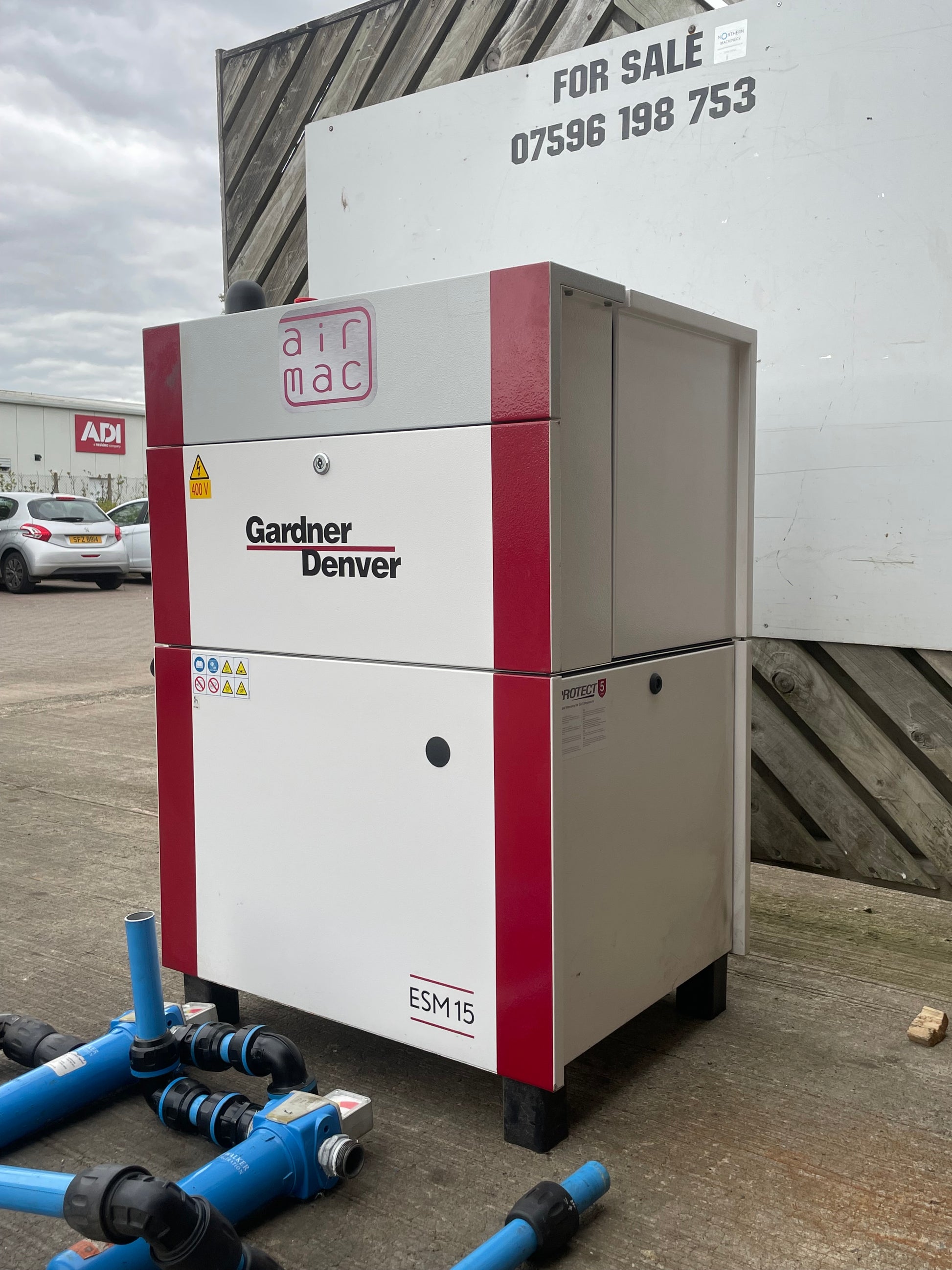

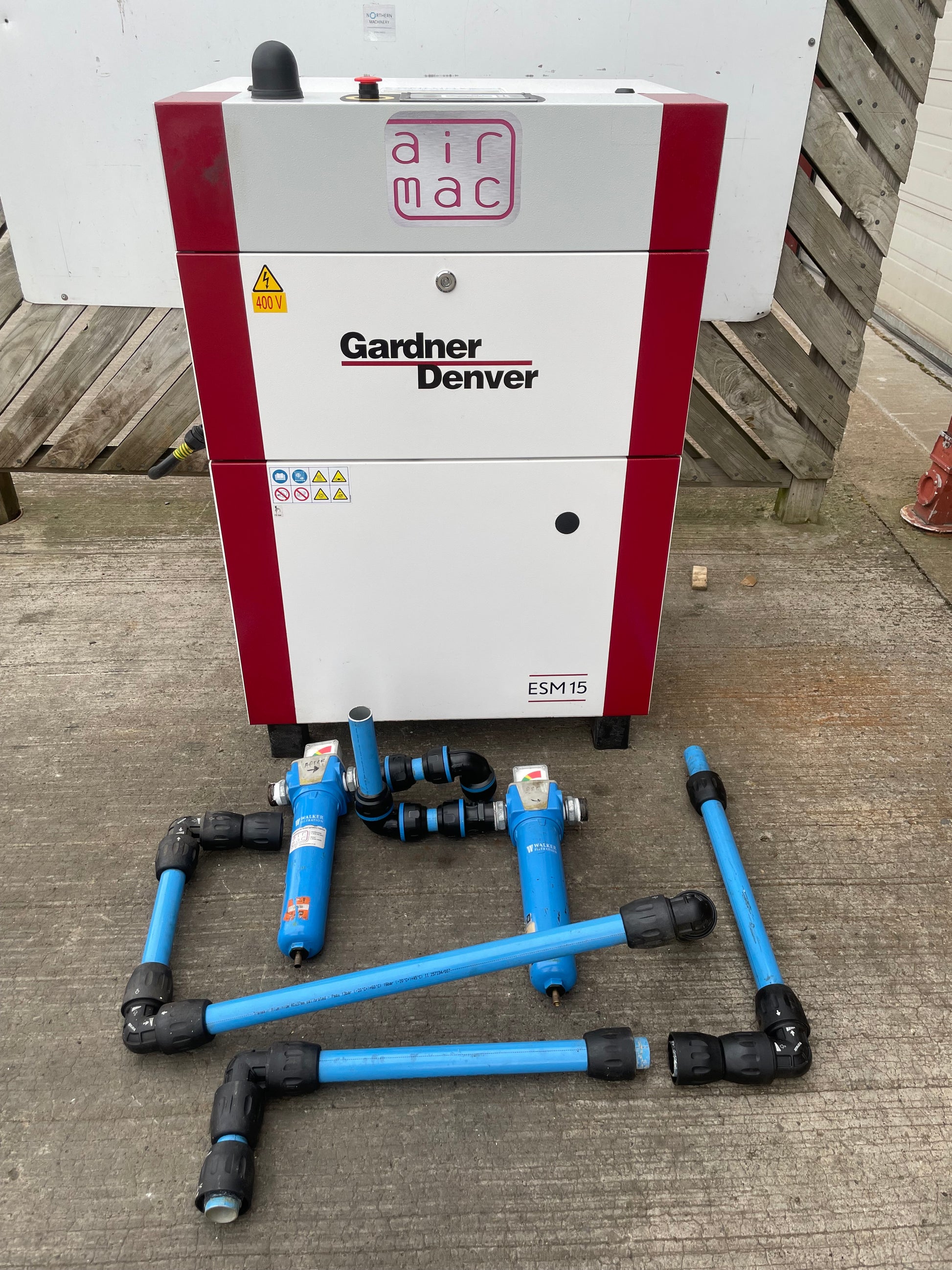

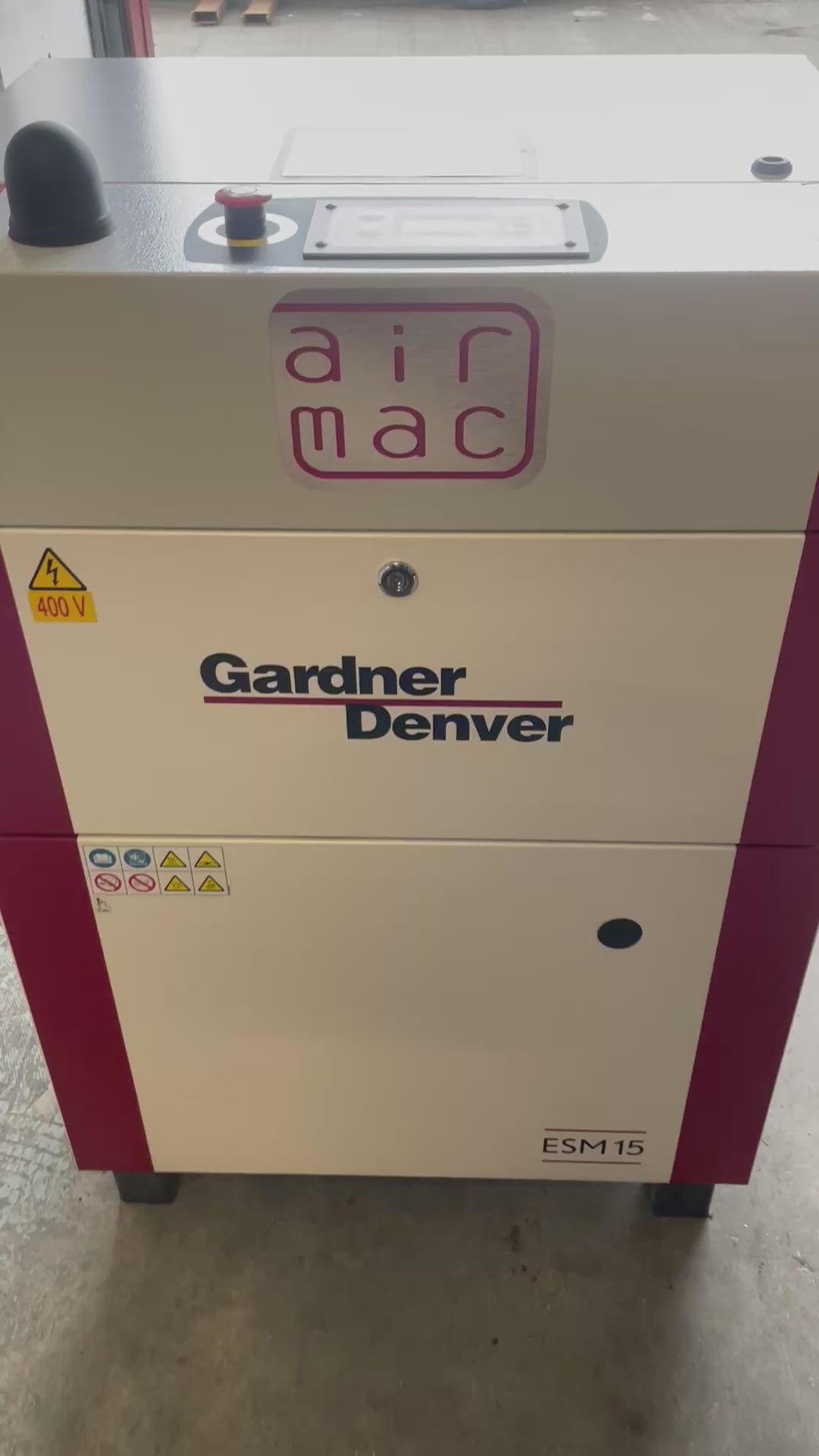

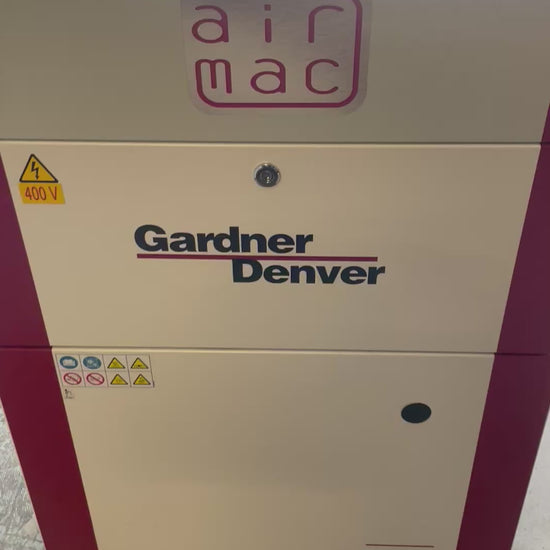

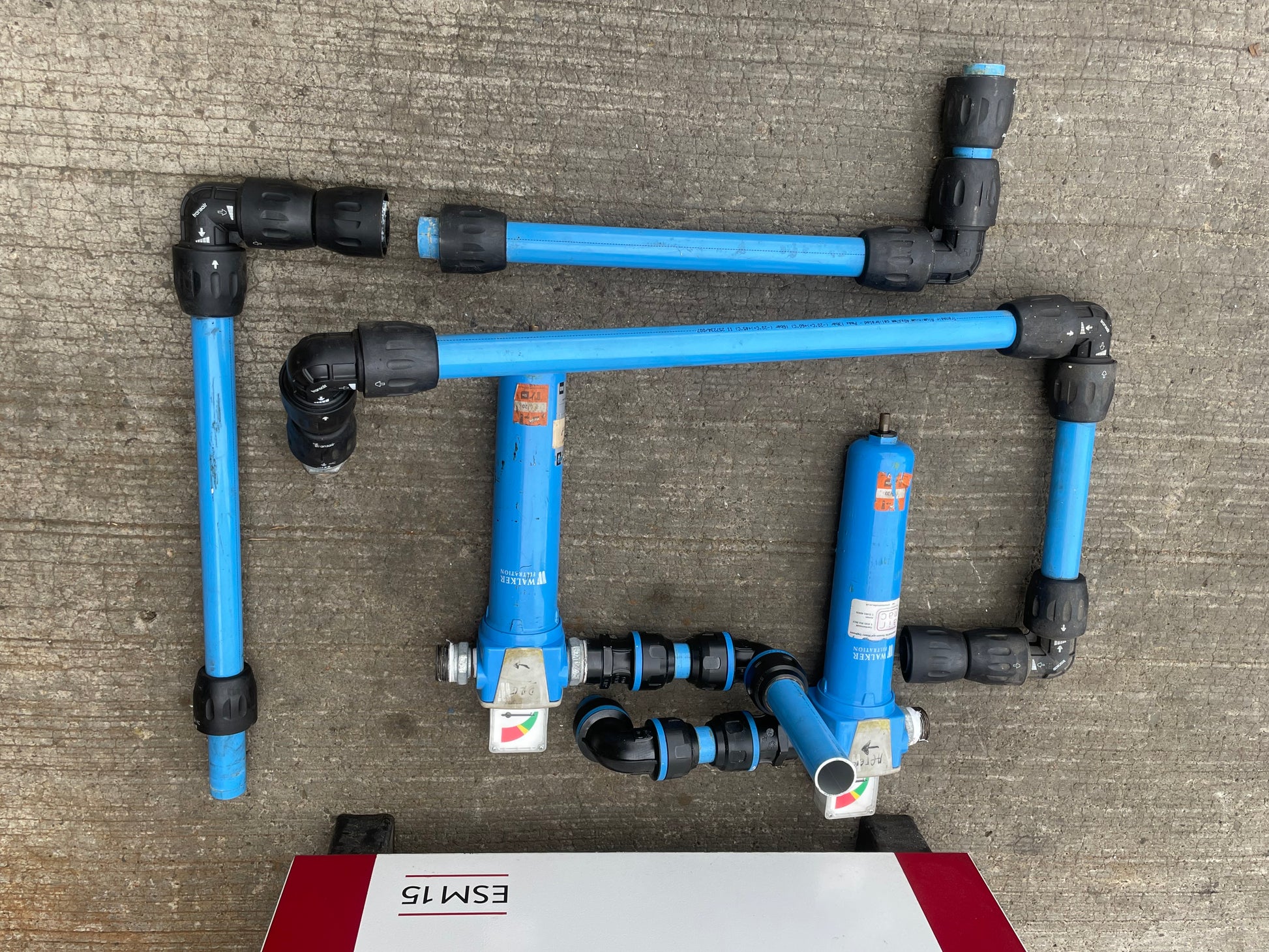

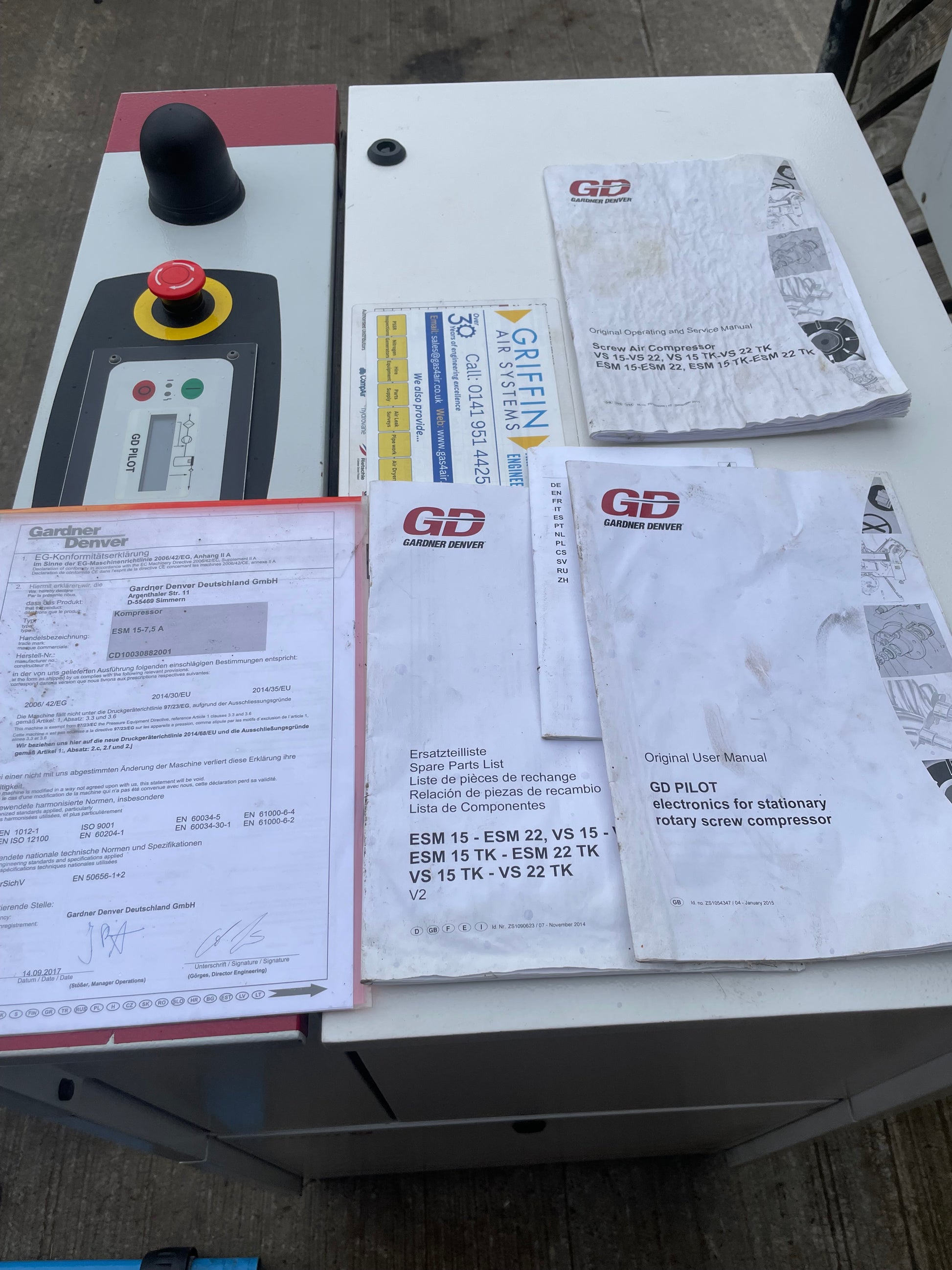

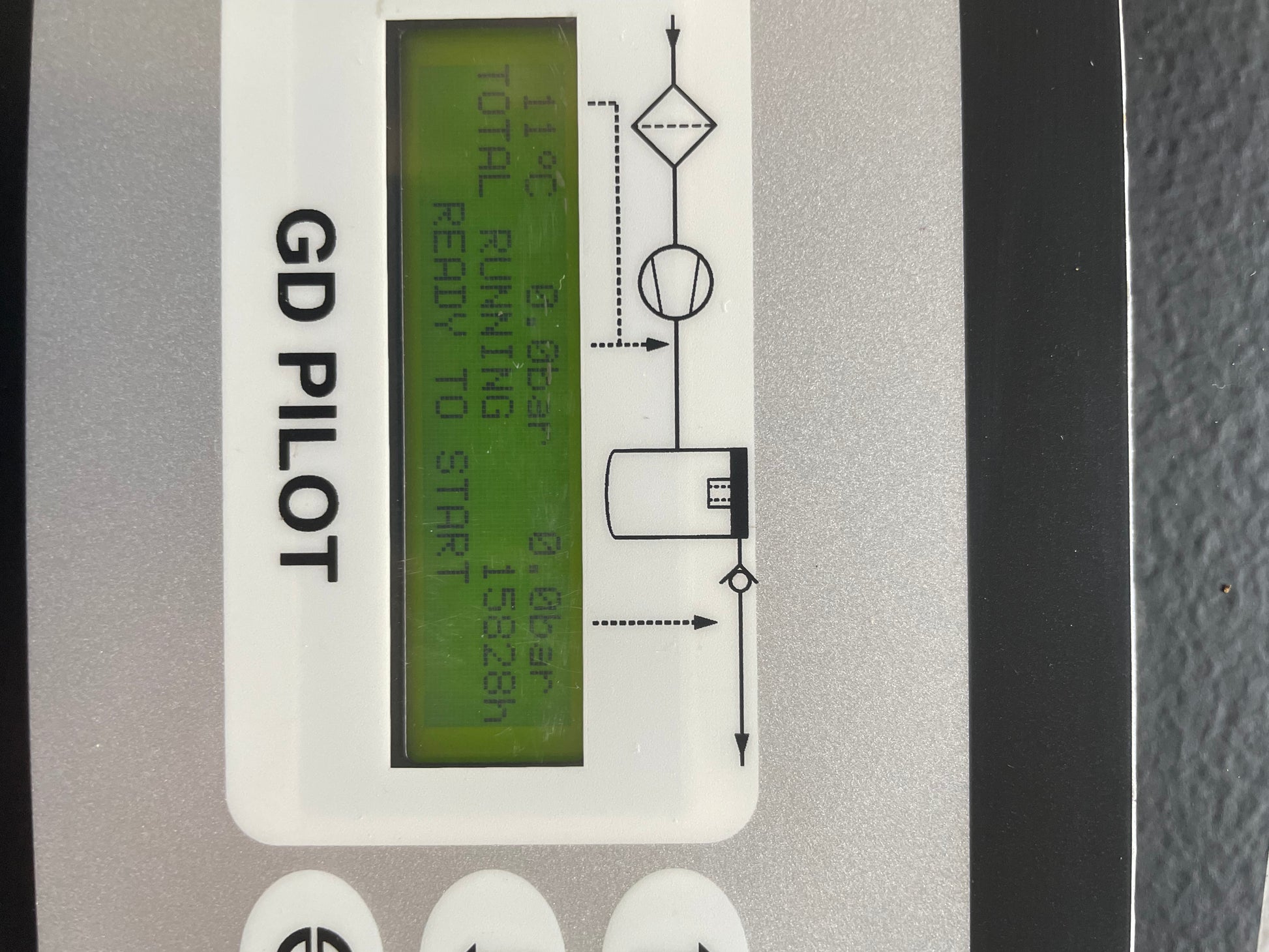

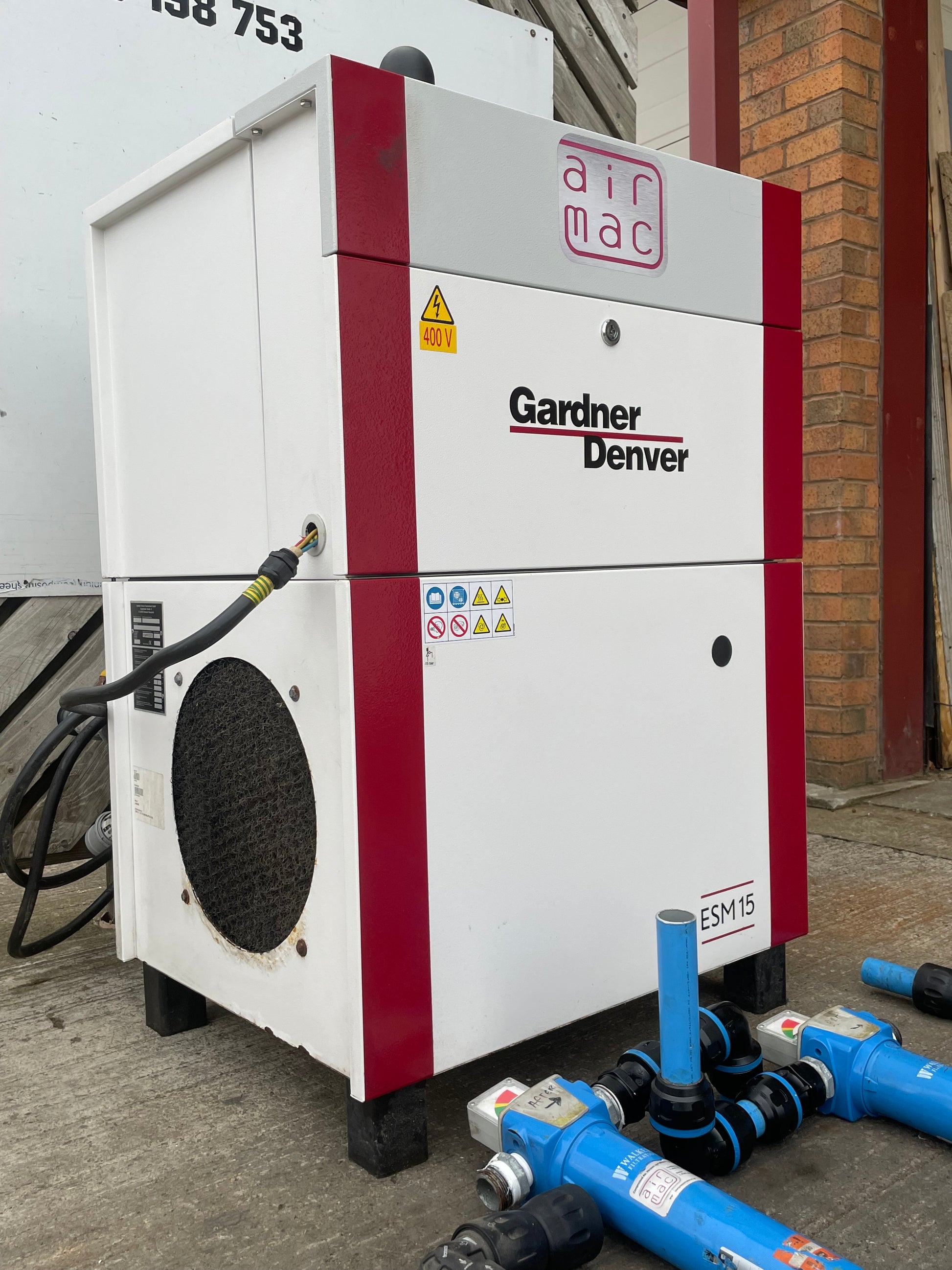

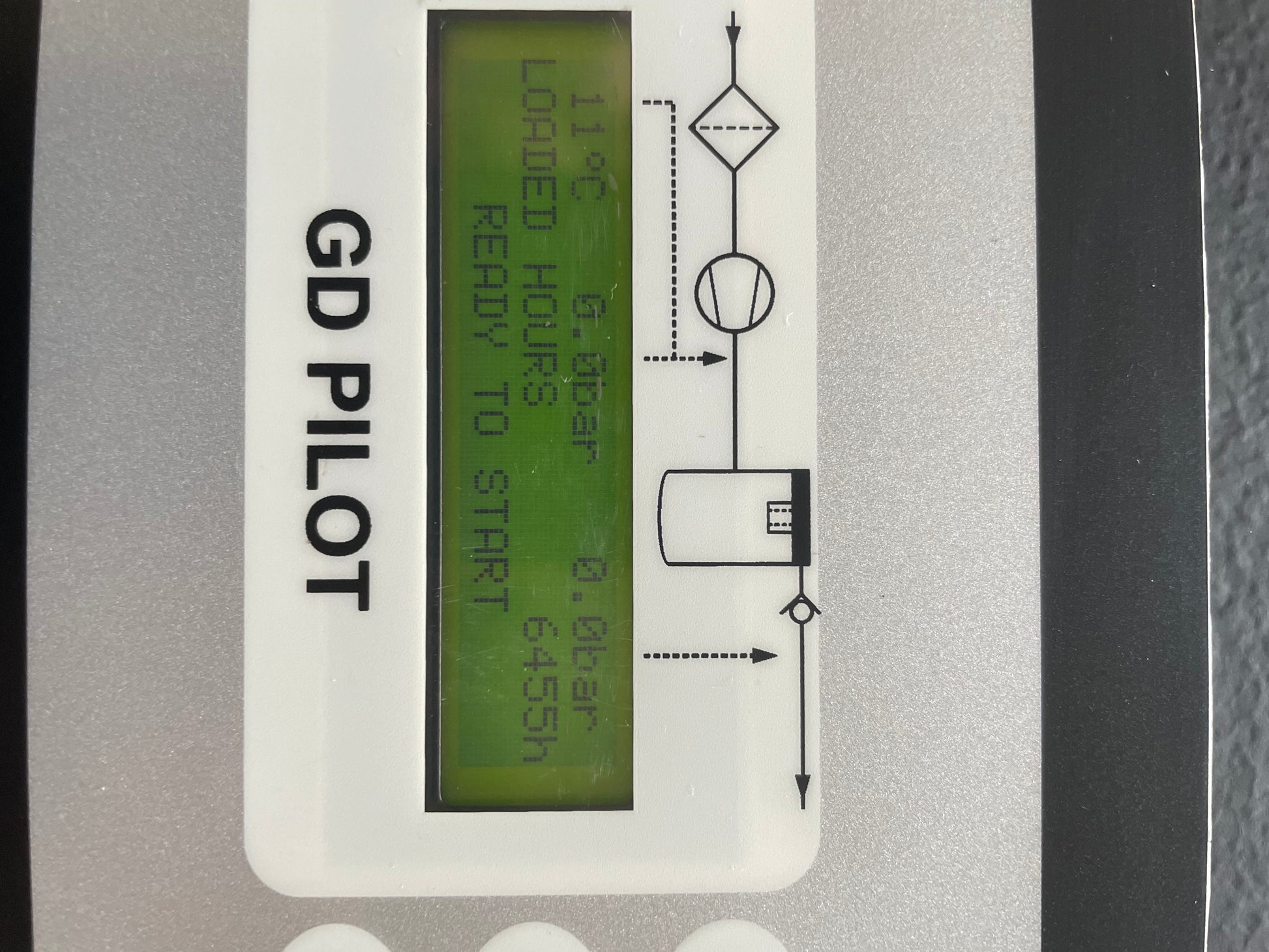

Gardner Denver ESM 15 Screw Compressor 2017 model , Good Clean Machine only 6455 load hours Total Running Hours 15828 with service history also Comes With 2 x water trap / filters well as some pipe work and bends as pictured ..
Core Specifications
- Motor Power: 15 kW (20 hp)
-
Free Air Delivery (FAD) by Pressure:
- 7.5 bar (108 psi): 2.72 m³/min (96 cfm)
- 10 bar (145 psi): 2.30 m³/min (81 cfm)
- 13 bar (188 psi): 1.83 m³/min (64 cfm)
-
Drive Type: Belt drive with automatic tensioning system for low maintenance

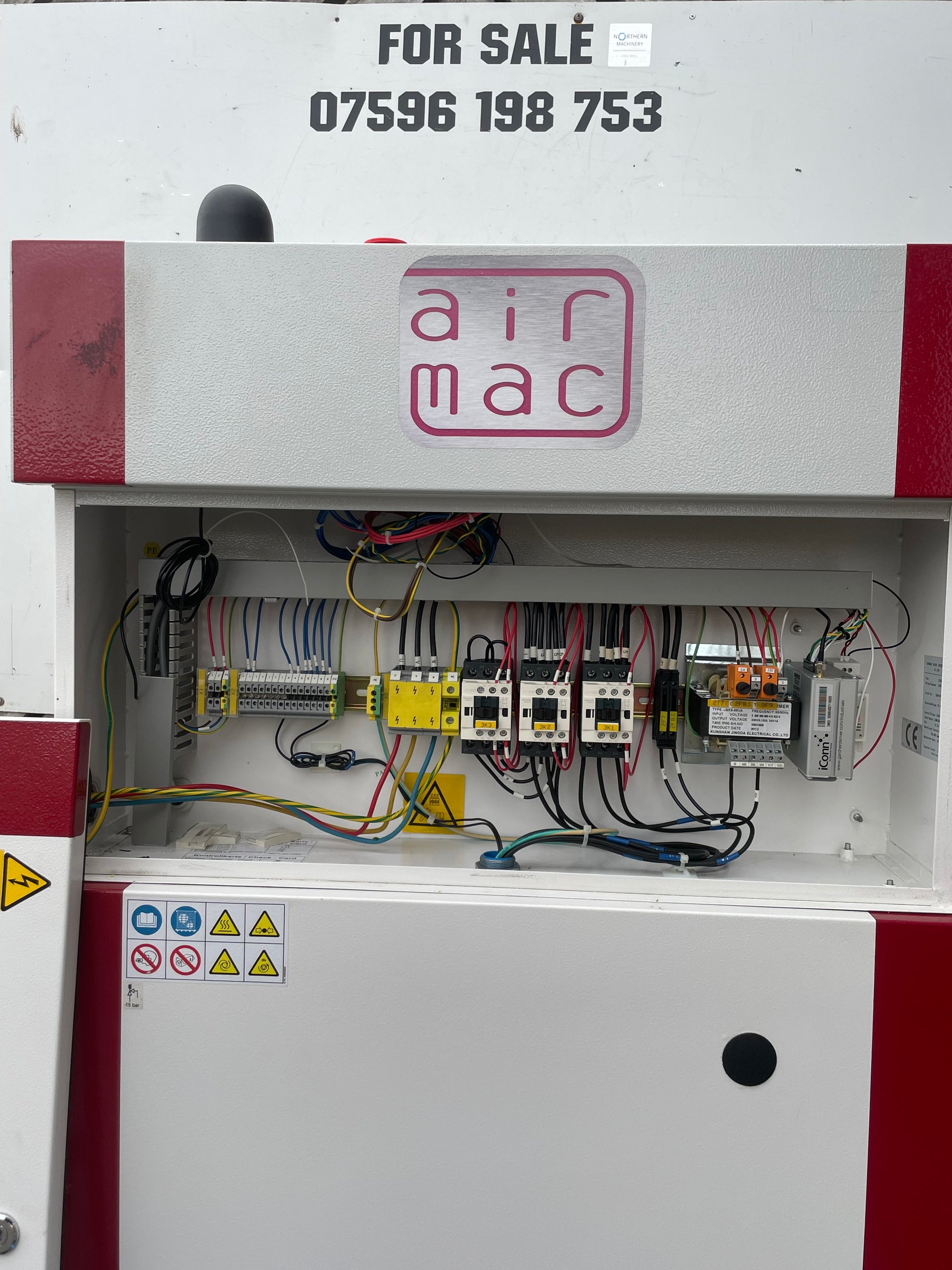

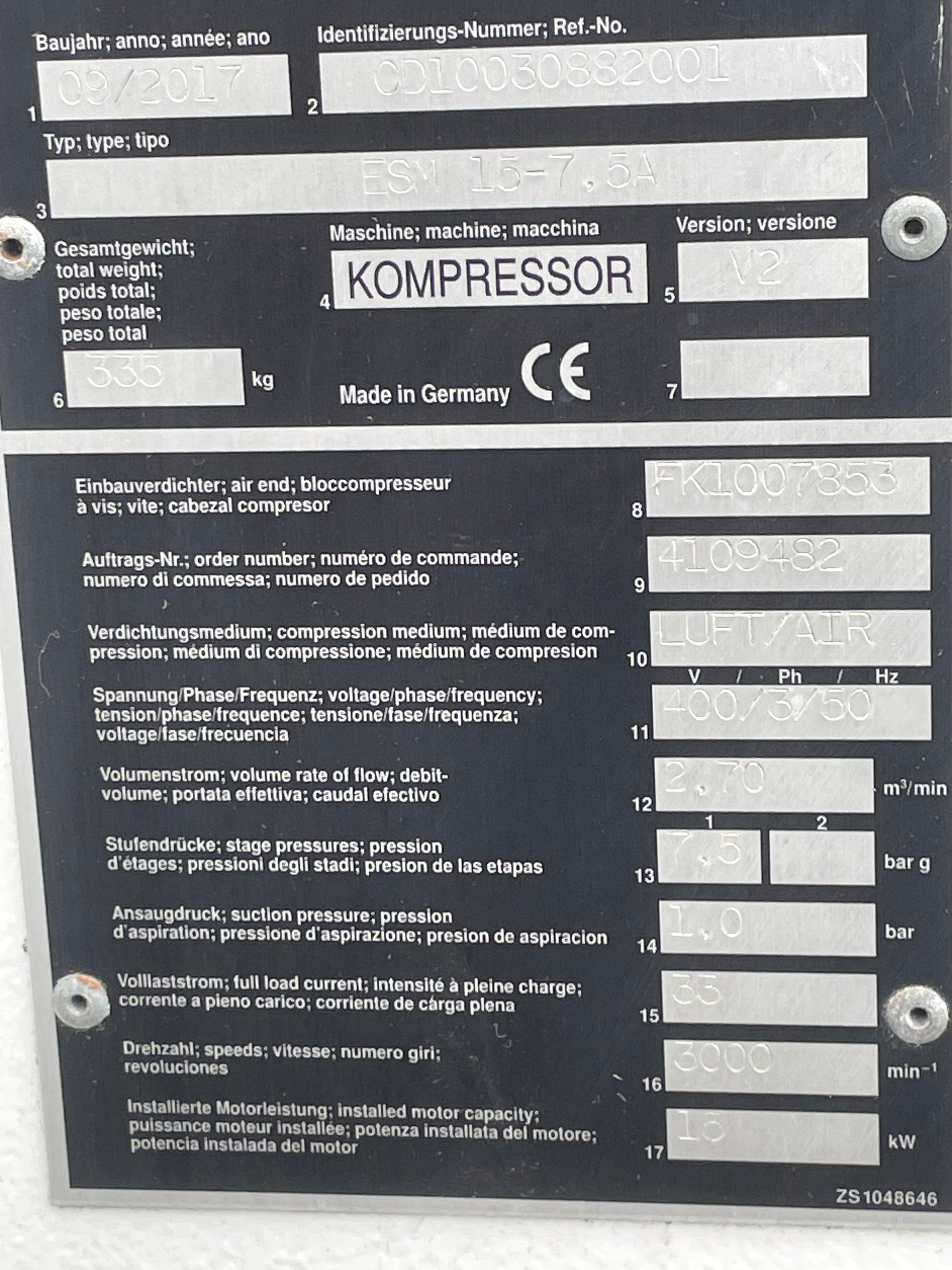

Electrical Data
- Voltage Options: Typically 400V / 3-Phase / 50Hz
- Motor Enclosure: IP55 (IE3 standard)
-
Full Load Current: 33 Amps (at 400V)
Physical & Cooling Data
- Weight: ~335 kg (base mounted)
- Dimensions: 787 mm (L) × 664 mm (W) × 1194 mm (H)
- Air Connection: 1" BSP
- Oil Capacity: 9.5 Litres
- Cooling Method: Air-cooled (maximum ambient temp 45°C)
-
-
Key Features & Controller

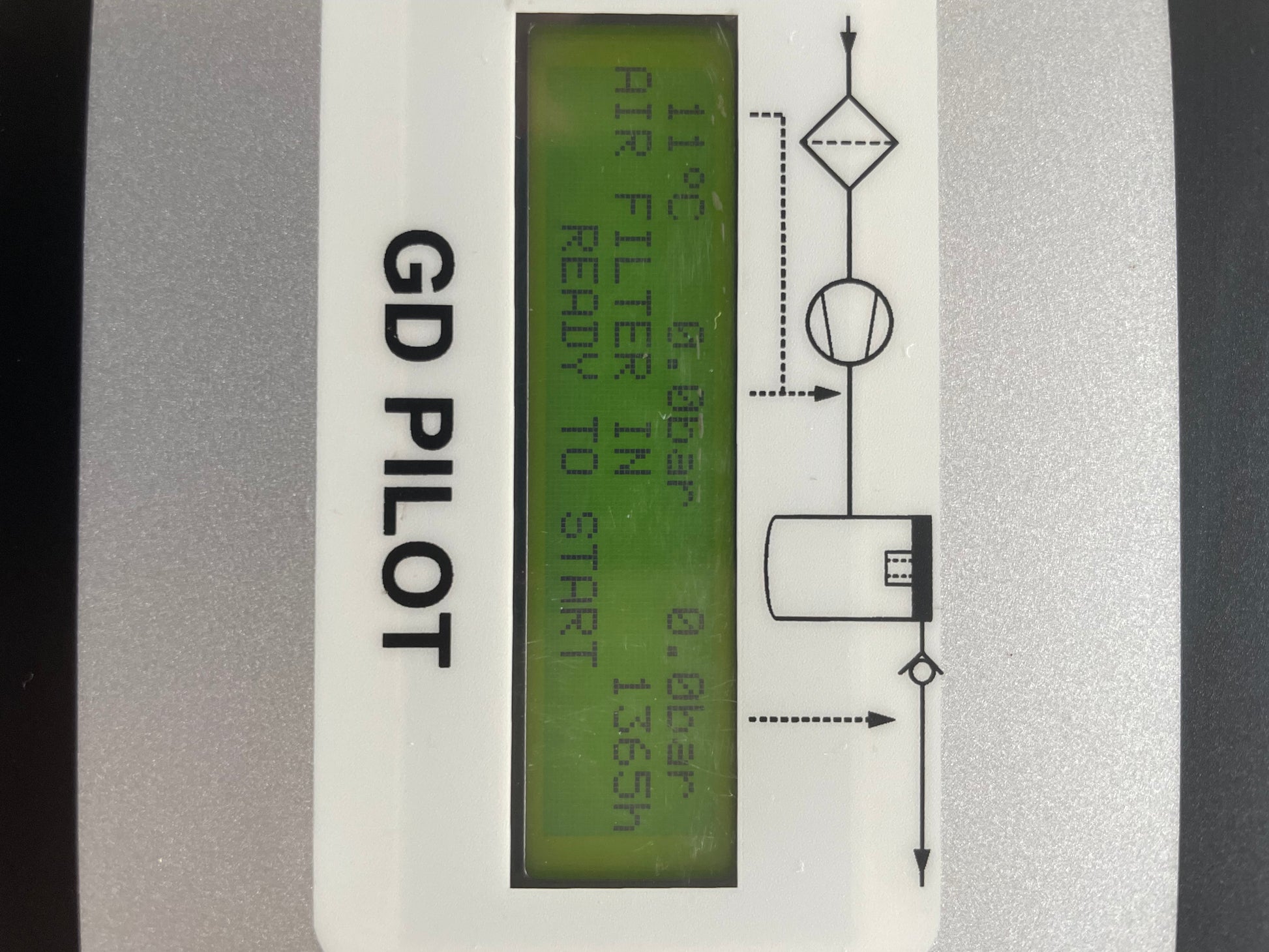

- GD PILOT Controller: Provides clear text displays for line pressure, temperature, total runtime, and service due indicators.
- Integrated Airend: The advanced rotary screw element integrates oil filtration and regulation, reducing external hoses and increasing reliability.
